FERRO Passive
THE ENERGY SAVER FOR LOW COSTS HEATING
The energy saver - FERRO Passive from Moralt. The insulation professional for all low-energy and Passivhaus requirements, as certified by the Passivhaus Institute. This door product from Moralt AG creates the best conditions for a more comfortable and healthy indoor climate thanks to its high level of thermal insulation, airtightness as a door set and its sophisticated design. The flat steel stabilizer running lock side in the core is insulated, preventing thermal bridges and thus also preventing condensation problems. FERRO Passive guarantees the highest technical durability and achieves the best values in all performance classes according to EN 14351-1. Moralt FERRO Passive already meets the insulation values of tomorrow today.
FERRO Passive saves heating costs - a logical and profitable investment in the future. Use Passivhaus and KfW 40 houses as growth markets. With the Moralt 98mm Passivhaus system you begin a new journey into low energy construction projects.
QUALITY FEATURES:

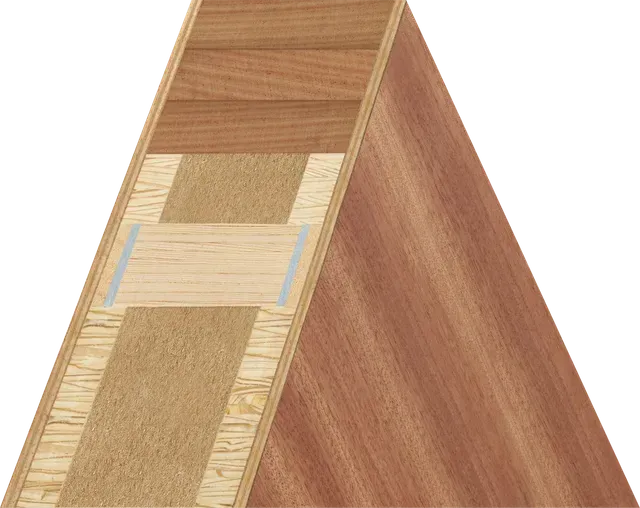

The 5-layer veneer board
A 5-layer, AW-glued veneer plywood panel made from carefully selected woods.
Advantages:
- The decorative veneer layer consists of high-quality, sliced – or Fineline veneers, which are joint-glued together as shown. Our recommendation is to shorten the blank at both ends.
- The Moralt external door blank achieves a visual veneer structure on both sides, which corresponds to a door of very high quality.
Passive house certified
FERRO Passive saves heating costs and is a profitable investment in the future. Take advantage of the growth markets in the areas of passive houses and KfW 40 houses. With the 98mm passive house system you will receive the passive house certificate from Moralt.
Flat steel stabilizer
A flat steel stabilizer consisting of two flat pieces of steel grooved into the wood and glued over the entire surface. This works according to the static principle of tension and compression.
Advantages compared to a U-shaped steel and square profiles:
- No thermal bridge due to thermal separation of the two pieces of steel .
- Free of cavities, so no condensation forms inside.
- The flat steel stabilizers do not show on the surface even when the building moisture is high.
- Low weight by avoiding unnecessary steel joints.
LVL core middle layer
The LVL core with upright-standing annual rings, consisting of approx. 5 mm wide peeled veneers glued together. The optimum strength is attained through offset joints within the inner core layer.
Advantages:
- Highest Highest strength values from the offset laminated joints.
- Optimum surface smoothness thanks to the even distribution of the individual veneers and the consistent position of the annual rings.
Local wood species
The LVL core with upright-standing annual rings, consisting of approx. 5 mm wide peeled veneers glued together. The optimum strength is attained through offset joints within the inner core layer.
Advantages:
- Highest Highest strength values from the offset laminated joints.
- Optimum surface smoothness thanks to the even distribution of the individual veneers and the consistent position of the annual rings.
