FERRO Acoustic
THE SOUND ABSORBER FOR HEAVENLY PEACE
The sound absorber: Moralt AG‘s FERRO Acoustic. Come in and leave the hustle and bustle outside. Thanks to its extreme sound insulation of up to 47 dB, this product is peace itself. Manufactured from high quality components; engineered timber core, high quality laminated and finger-jointed timber stiles and rails and with a wide variety of weatherproof face options. The 2 part flat steel stabilizer is thermally separated and thus preventing thermal bridges. The specialist door core can be processed easily and cost-effectively using standard woodworking tools. In addition to its high level of sound insulation, FERRO Acoustic achieves excellent performance properties in accordance with EN 14351-1. Use the acoustic test certificates from our own product tests and widen your sales horizons. Rely on Moralt your door system- and know-how provider.
FERRO Acoustic meets the sound insulation requirements according to DIN 4109 in several sound insulation classes. FERRO Acoustic is not only used for bespoke customer projects but also for specification tenders. Excess noise is harmful to your health so ensure the very highest level of performance.
QUALITY FEATURES:

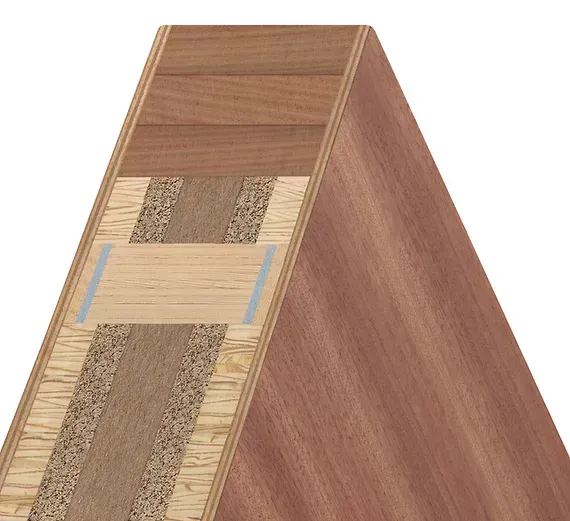

The 5-layer veneer board
A 5-layer, AW-glued veneer plywood panel made from carefully selected woods.
Advantages:
- The decorative veneer layer consists of high-quality, sliced – or Fineline veneers, which are joint-glued together as shown. Our recommendation is to shorten the blank at both ends.
- The Moralt external door blank achieves a visual veneer structure on both sides, which corresponds to a door of very high quality.
Sound insulation
Sound absorbers with the best test certificates:
FERRO Acoustic front door blanks correspond to the sound insulation index Rw putty value. There is also the value RwR (calculated value). This calculated value is the value of RwP reduced by the retention value (5 dB for doors). Will e.g. For example, if a sound insulation of 27 dB RwR is required on the construction site, a test value of RwP 32 dB is required. Please request our “ready-to-use element” recommendation.
Flat steel stabilizer
A flat steel stabilizer consisting of two flat pieces of steel grooved into the wood and glued over the entire surface. This works according to the static principle of tension and compression.
Advantages compared to a U-shaped steel and square profiles:
- No thermal bridge due to thermal separation of the two pieces of steel .
- Free of cavities, so no condensation forms inside.
- The flat steel stabilizers do not show on the surface even when the building moisture is high.
- Low weight by avoiding unnecessary steel joints.
Frame
Unmistakable handcrafted charm: Our stiles and rails are made of solid, carefully selected - or laminated, finger-jointed timber.
LVL core middle layer
The LVL core with upright-standing annual rings, consisting of approx. 5 mm wide peeled veneers glued together. The optimum strength is attained through offset joints within the inner core layer.
Advantages:
- Highest Highest strength values from the offset laminated joints.
- Optimum surface smoothness thanks to the even distribution of the individual veneers and the consistent position of the annual rings.
Local wood species
The LVL core with upright-standing annual rings, consisting of approx. 5 mm wide peeled veneers glued together. The optimum strength is attained through offset joints within the inner core layer.
Advantages:
- Highest Highest strength values from the offset laminated joints.
- Optimum surface smoothness thanks to the even distribution of the individual veneers and the consistent position of the annual rings.
